Drawer unit 45

Drawer unit with castors by Treston

A versatile, lockable, light grey (RAL 7035) drawer unit, with wheels or a plinth, or the standard model can be mounted under a worktop. The frame comes in two different heights, and there are many drawer combinations to choose from. Drawer units equipped with wheels serve as tool trolleys and additional work surfaces. A cabinet version with an adjustable shelf is also available. Most of the models come with ESD protection, which makes them suitable for use in EPAs.

  • 100+ drawer combinations to choose from
  • A 450 mm wide drawer unit made from powder-coated (light grey, RAL 7035) steel
  • Two different height options

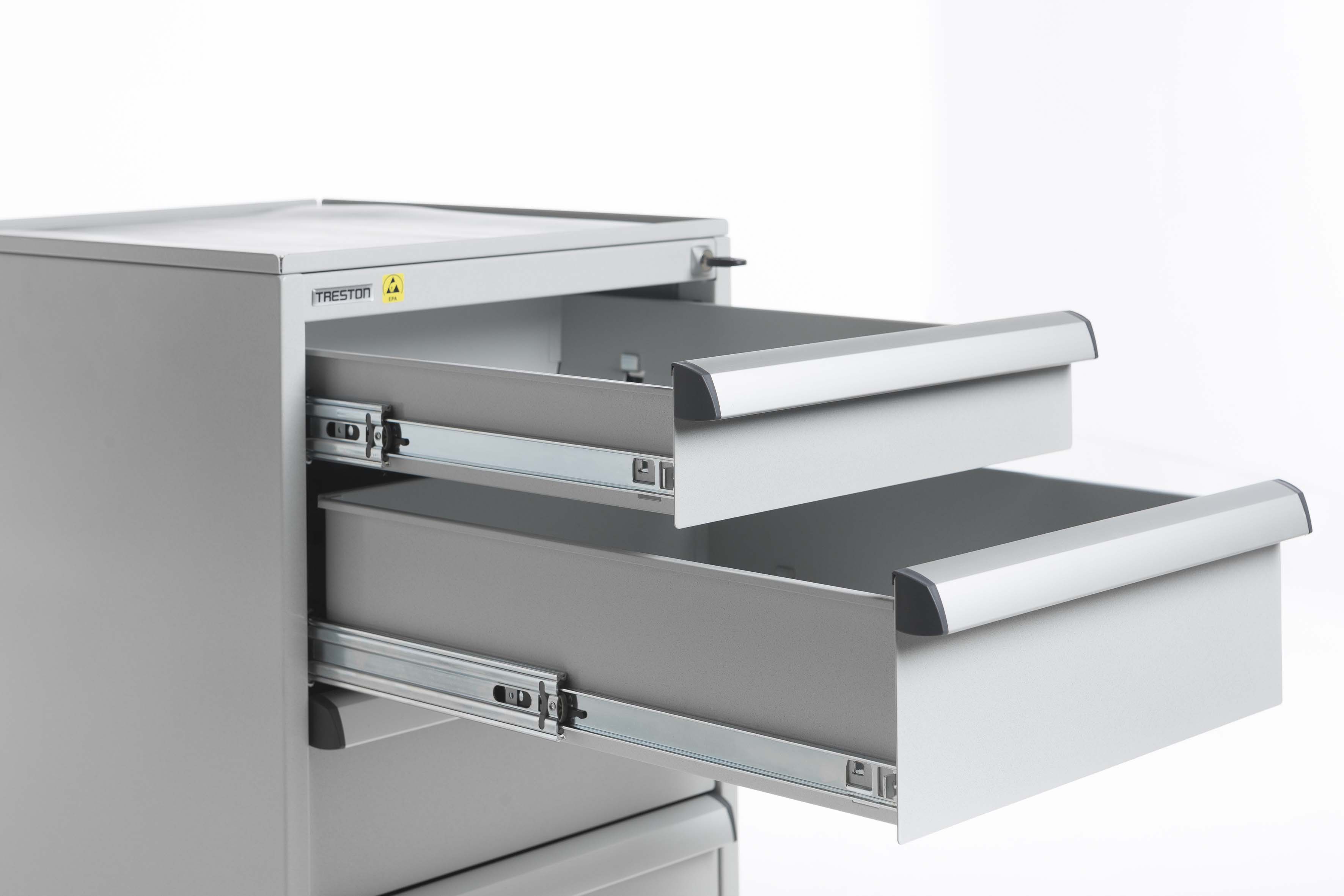

  • Telescopic sliders ensure that the drawers open and close smoothly
  • A central locking system, so that all drawers are locked simultaneously
  • Maximum load 60 kg for drawers that open 100%, 30 kg for drawers that open 75%
  • Total load capacity for drawer units with wheels 150 kg
  • The standard cabinet version has a floor and one height-adjustable shelf with a maximum load of 50 kg
  • A mounting kit, ordered separately, is needed to models mounted under the worktop
Drawer unit with castors by Treston

Drawer unit 45 (75)

Code Product Includes drawers, pcs x height mm ESD Height mm Drawer max load kg Enquiry Documents
Product image
Code
60349001
Product
Drawer unit 45/14-1
Includes drawers, pcs x height mm
1x100
ESD
Yes
Height mm
140
Drawer max load kg
60
Enquiry
Documents
Product image
Code
60449001
Product
Drawer unit 45/26-1
Includes drawers, pcs x height mm
2x100
ESD
Yes
Height mm
260
Drawer max load kg
60
Enquiry
Documents
Product image
Code
60649101
Product
Drawer unit 45/56-1, standard
Includes drawers, pcs x height mm
5x100
ESD
Yes
Height mm
560
Drawer max load kg
60
Enquiry
Documents
Product image
Code
60649102
Product
Drawer unit 45/56-2, standard
Includes drawers, pcs x height mm
2x100, 2x150
ESD
Yes
Height mm
560
Drawer max load kg
60
Enquiry
Documents
Product image
Code
60649103
Product
Drawer unit 45/56-3, standard
Includes drawers, pcs x height mm
3x100, 1x200
ESD
Yes
Height mm
560
Drawer max load kg
60
Enquiry
Documents
Product image
Code
60649104
Product
Drawer unit 45/56-4, standard
Includes drawers, pcs x height mm
1x100, 2x200
ESD
Yes
Height mm
560
Drawer max load kg
60
Enquiry
Documents
Product image
Code
60649105
Product
Cabinet 45/56, door right, standard
Includes drawers, pcs x height mm
ESD
Yes
Height mm
560
Drawer max load kg
50
Enquiry
Documents
Product image
Code
60649106
Product
Cabinet 45/56, door left, standard
Includes drawers, pcs x height mm
ESD
Yes
Height mm
560
Drawer max load kg
50
Enquiry
Documents
Product image
Code
60649107
Product
Drawer unit 45/56-7, standard
Includes drawers, pcs x height mm
2x150, 1x200
ESD
Yes
Height mm
560
Drawer max load kg
60
Enquiry
Documents
Code
60649108
Product
Cabinet 45/56, door right with lock, standard
Includes drawers, pcs x height mm
ESD
Yes
Height mm
560
Drawer max load kg
50
Enquiry
Documents

Accessories for Drawer unit 45 (9)

Code Product Enquiry Documents
Product image
Code
854463-49
Product
Drawer unit 30, 45 and 75 fastening set, Concept/LMT/TL
Enquiry
Documents
Product image
Code
872997-49
Product
Divider set 2, drawers 45/150 and 45/200
Enquiry
Documents
Product image
Code
872996-49
Product
Divider set 1, drawers 45/150 and 45/200
Enquiry
Documents
Product image
Code
872992-49
Product
Divider set 2, drawer 45/100
Enquiry
Documents
Product image
Code
872993-49
Product
Divider set 3, drawer 45/100
Enquiry
Documents
Product image
Code
872991-49
Product
Divider set 1, drawer 45/100
Enquiry
Documents
Product image
Code
872999-49
Product
Divider set 4, drawers 45/150 and 45/200
Enquiry
Documents
Product image
Code
872994-49
Product
Divider set 4, drawer 45/100
Enquiry
Documents
Product image
Code
872998-49
Product
Divider set 3, drawers 45/150 and 45/200
Enquiry
Documents
