Drawer unit 130

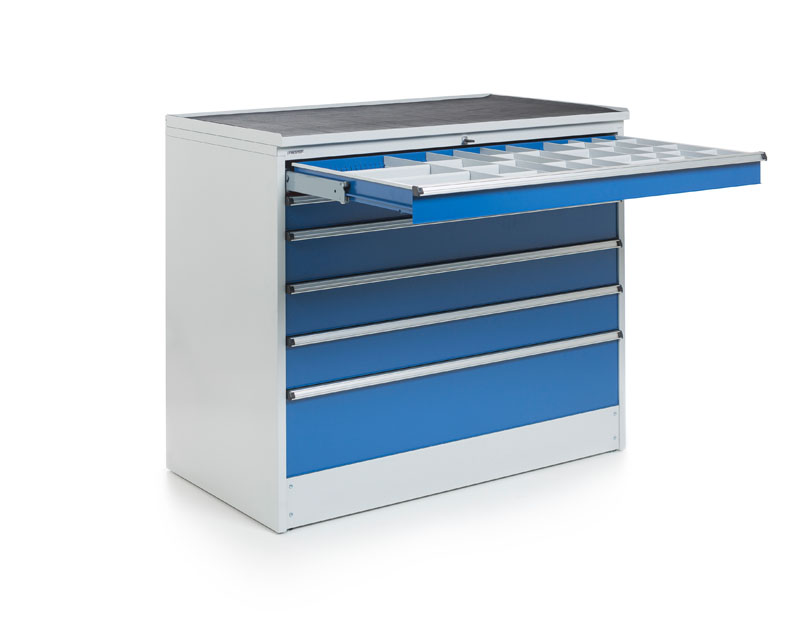

Treston heavy drawer unit 130. Drawer open. Load capacity up to 200 kg per drawer.

A family of spacious, powder-coated steel drawer units, with a light grey (RAL 7035) frame and blue (RAL 5007) drawers. Two heights of 1100 and 1400 mm. The 1100 mm high drawer unit is ideal for standing work, and it has a reinforced worktop with a rubber mat. A safety lock prevents more than one drawer from opening at the same time. The standard model has a plinth, which enables the drawer unit to be moved easily by forklift.

  • Pick and choose from many drawer combinations
  • Powder-coated steel, light grey (RAL 7035) frame, and blue (RAL 5007) drawers
  • Width 1300 mm, depth 715 mm, and height 1100/1400 mm
  • Drawers open 100%, maximum load per drawer 75 or 200 kg
  • The 1100 mm high drawer unit has a reinforced worktop with a rubber mat
  • Adjustment screws enable the drawer unit to be positioned directly onto an uneven surface
  • Can be moved by forklift
  • Accessories include organisers for drawers, such as tool trays, dividers, and interiors, as well as rubber mats
Treston heavy drawer unit 130. Drawer open. Load capacity up to 200 kg per drawer.

Drawer unit 130 (70)

Code Product Includes drawers, pcs x height mm Height mm Drawer opening Drawer max load kg Enquiry Documents
Product image
Code
61507001
Product
Drawer unit 130/110-1
Includes drawers, pcs x height mm
2x100, 3x150, 1x250
Height mm
1100
Drawer opening
100
Drawer max load kg
75
Enquiry
Documents
Product image
Code
61507001H
Product
Drawer unit 130/110-1
Includes drawers, pcs x height mm
2x100, 3x150, 1x250
Height mm
1100
Drawer opening
100
Drawer max load kg
200
Enquiry
Documents
Product image
Code
61507002
Product
Drawer unit 130/110-2
Includes drawers, pcs x height mm
2x75, 3x100, 3x150
Height mm
1100
Drawer opening
100
Drawer max load kg
75
Enquiry
Documents
Product image
Code
61507002H
Product
Drawer unit 130/110-2
Includes drawers, pcs x height mm
2x75, 3x100, 3x150
Height mm
1100
Drawer opening
100
Drawer max load kg
200
Enquiry
Documents
Product image
Code
61507003
Product

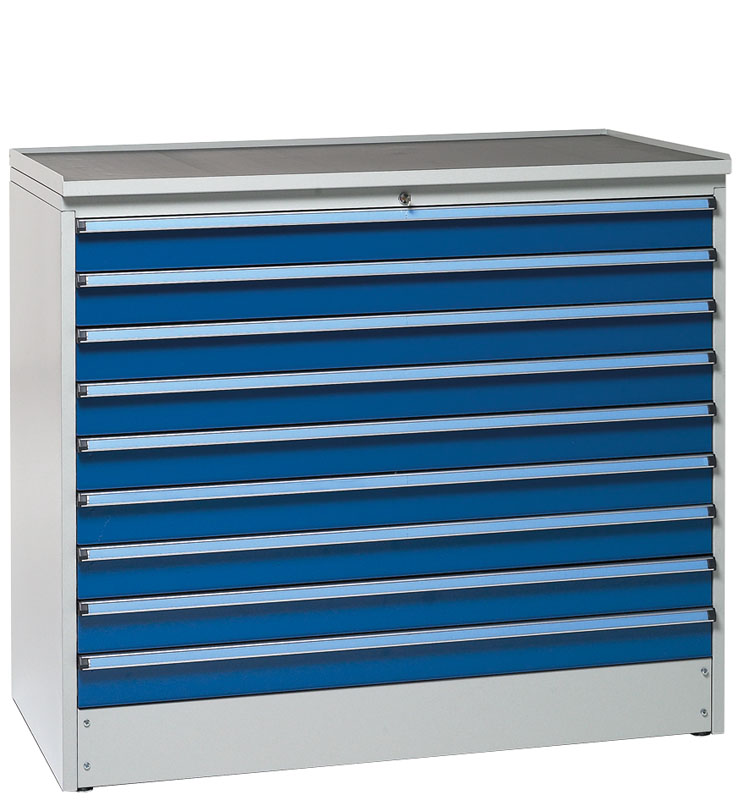

Drawer unit 130/110-3
Includes drawers, pcs x height mm
9x100
Height mm
1100
Drawer opening
100
Drawer max load kg
75
Enquiry
Documents
Product image
Code
61507003H
Product
Drawer unit 130/110-3
Includes drawers, pcs x height mm
9x100
Height mm
1100
Drawer opening
100
Drawer max load kg
200
Enquiry
Documents
Product image
Code
61507004
Product
Drawer unit 130/110-4
Includes drawers, pcs x height mm
2x75, 2x100, 2x150, 1x250
Height mm
1100
Drawer opening
100
Drawer max load kg
75
Enquiry
Documents
Product image
Code
61507004H
Product
Drawer unit 130/110-4
Includes drawers, pcs x height mm
2x75, 2x100, 2x150, 1x250
Height mm
1100
Drawer opening
100
Drawer max load kg
200
Enquiry
Documents
Product image
Code
61507013
Product
Drawer unit 130/110-13
Includes drawers, pcs x height mm
6x100, 2x150
Height mm
1100
Drawer opening
100
Drawer max load kg
75
Enquiry
Documents
Product image
Code
61507013H
Product
Drawer unit 130/110-13
Includes drawers, pcs x height mm
6x100, 2x150
Height mm
1100
Drawer opening
100
Drawer max load kg
200
Enquiry
Documents

Accessories for Drawer unit 130 (28)

Code Product Enquiry Documents
Product image
Code
854082-00
Product
Rubber mat 130 for the drawer bottom
Enquiry
Documents
Product image
Code
873075-49
Product
Divider set 5 130/75
Enquiry
Documents
Product image
Code
873086-49
Product
Divider set 6 130/100
Enquiry
Documents
Product image
Code
873098-49
Product
Divider set 8 130/150&250
Enquiry
Documents
Product image
Code
873071-49
Product
Divider set 1 130/75
Enquiry
Documents
Product image
Code
873087-49
Product
Divider set 7 130/100
Enquiry
Documents
Product image
Code
873092-49
Product
Divider set 2 130/150&250
Enquiry
Documents
Product image
Code
873094-49
Product
Divider set 4 130/150&250
Enquiry
Documents
Product image
Code
873076-49
Product
Divider set 6 130/75
Enquiry
Documents
Product image
Code
873078-49
Product
Divider set 8 130/75
Enquiry
Documents
